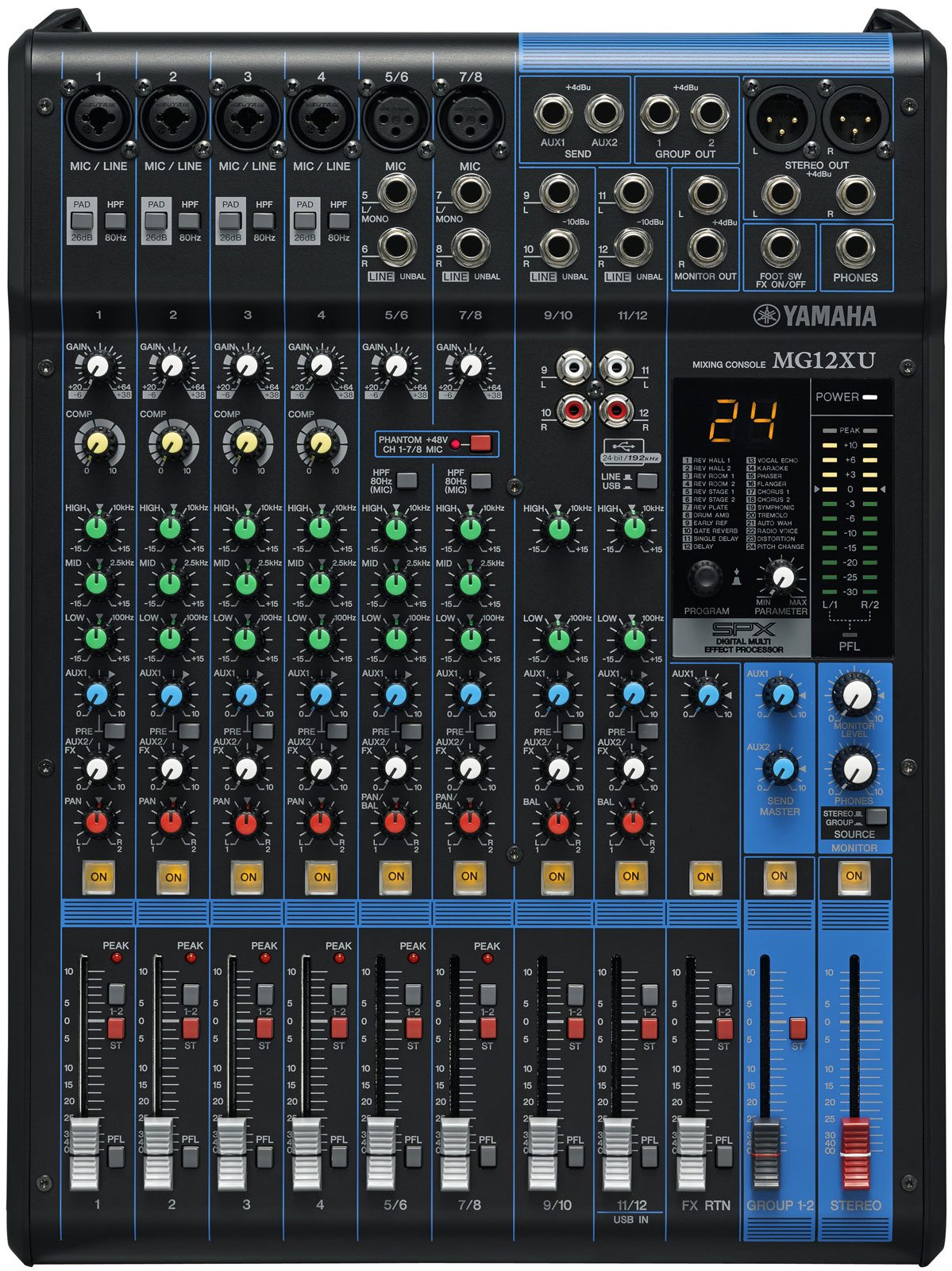

Yamaha MG 12XU

Description

Yamaha MG 12XU Specifications

• Mixing Channels :  12 Line Inputs (4 mono and 4 stereo)
• Group : 4 GROUP Buses + ST Bus
• AUX : 2 AUX Sends + 2 FX Sends
• Matrix : –
• On- Board Processors : FX1:REV-X(8 PROGRAM, PARAMETER control), FX2:SPX (16 PROGRAM, PARAMETER control)
• MIC inputs : MIC:6 (100Hz 12dB/oct)
• Phantom power : 48V phantom power per channel
• Line Inputs : LINE: 4mono+4stereo, CH INSERT IN: 4, RETURN: 1stereo, 2TR IN: 1 stereo
• Digital I/O : USB Audio USB IN/OUT: iPod, iPhone exclusive
• Frequency Response : +0.5/-1.0dB 20Hz – 20kHz, refer to the nominal output level @1kHz
• Equivalent Input Noise :-128 dBu (20Hz–20 kHz, Rs=150Ω, Input Gain = Maximum)
• Residucal output Noise : -102 dBu (20Hz–20 kHz, Rs=150Ω, Input Gain = Maximum)
• Crosstalk : -74dB @ 1kHz
• Power Requirements : 100-240V 50Hz/60Hz
