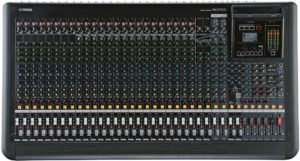

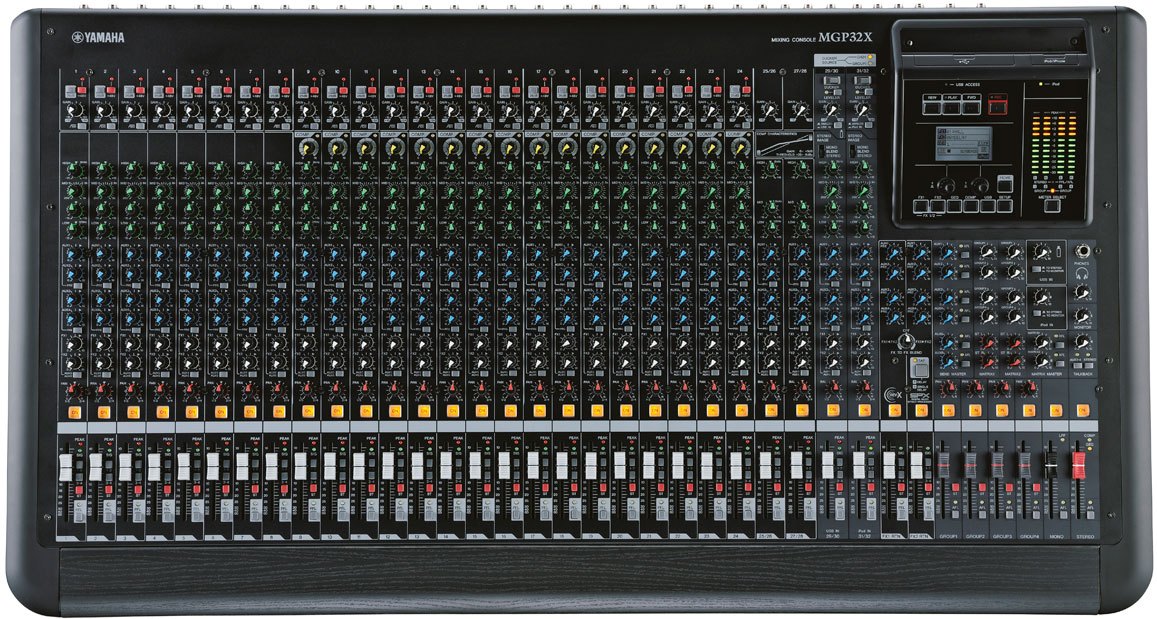

Yamaha MGP 32X

Description

Yamaha MGP 32X Specifications

• Mixing Channels :  24 Line Inputs (16 mono and 4 stereo)
• Group : 4 GROUP Buses + ST Bus
• AUX : 6 AUX Sends + 2 FX Sends
• Matrix : 1 Matrix out
• On- Board Processors : FX1:REV-X(8 PROGRAM, PARAMETER control)/ FX2:SPX(16 PROGRAM, PARAMETER control)
• MIC inputs : MIC: 16 (INPUTS HPF: 100Hz 12dB/oct)
• Phantom power : 48V phantom power per channel
• Line Inputs : LINE: 16 mono + 4 stereo, CH INSERT: 16 RETURN: 1 stereo
• Digital I/O : USB Device, iPod / iPhone
• Frequency Response : +0.5/-1.0dB 20Hz – 20kHz, refer to the nominal output level @1kHz
• Equivalent Input Noise : -128 dBu Equivalent Input Noise
• Residucal output Noise : -94 dBu Residual Output Noise
• Crosstalk : -74dB @ 1kHz
• Power Requirements : 100-240V 50Hz/60Hz
